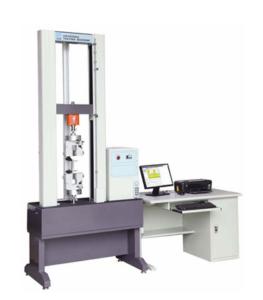

Universal Testing Stroke 1100 mm Selectable Resolution Tensile Testing Machine
Description:
tensile strength testing equipment are widely applied to determining elongation,
compression, flexing,tear,peeling,shear force,adhesive force,etc.of finished or semifinished products such as rubber,plastic, footwear, leathers, metal,wire, paqer, timber,etc.
Specification:
|
Model
|
YY1307
|
|
Capacity (optional)
|
100, 200, 500 N; 1, 2, 5, 10, 20,30 kN
|
|
Unit (Switchable)
|
kgf, gf,, lbf, N, kN,MPa,Pa or by user`s definition
|
|
Load Resolution
|
1/200,000
|
|
Load Accuracy
|
±0.5%
|
|
Load Range
|
Rangeless (full scales at the same amplification)
|
|
Stroke (exclude the grips)
|
1100 mm
|
|
Effective width
|
400 mm
|
|
Test Speed
|
0.0001~1000mm/min
|
|
Speed Accuracy
|
|
|
Stroke Resolution
|
0.00004 mm
|
|
Sample Rate
|
200 times/sec
|
|
Communication Interface
|
USB
|
|
Display method
|
U62 Dedicated Software
|
|
Motor
|
AC servo motor
|
|
Dimension (WxDxH)
|
Main Unit (Height exclusive of footpad)
|
111 × 64 × 233 cm
|
|
Computer/Desk
|
109 × 65 × 116 cm
|
|
Weight (approx.)
|
Main Unit
|
263kg (excluding control cabinet and grips)
|
|
Computer/Desk
|
50kg
|
|
Power
|
1∮, 220V,50/60Hz,15A or specified by user
|
The accessories such as the different grips, elongation measuring-devices... etc. are
equipped according to the requirements specified in the contract; our sales
representative will also give the proper suggestions to our customer beforehand.
