800L Environmental test Chamber Programmable Lab Constant Temperature Humidity Control Cabinet

Name: 800L Environmental test Chamber Programmable Lab Constant Temperature Humidity Control Cabinet
Brand: YUYANG
Price: 1 USD

Quality 800L Environmental test Chamber Programmable Lab Constant Temperature Humidity Control Cabinet wholesale

Brand Name : YUYANG

Model Number : YYE006

Certification : IEC60068-2-1, IEC60068-2-2, GJB150.3, GJB150.4, GJB150.9

Place of Origin : CHINA

MOQ : 1

Price : negotiation

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 100 SETS A MONTH

Delivery Time : 1-3 WORK DAYS

Packaging Details : Wooden Box

Temperature Range : -70℃~150°C

Humidity Range : 5%～98 RH

Inner Chamber Volume : 80L, 150L, 225L, 408L, 800L, 1000L

Chamber Material : Inner: SUS304 Stainless Steel, Outer: SUS201 Stainless Steel With Paint

Test Chamber : Explosion-proof

Observation Window : Three-layer Vacuum Glass, Anti-sweat, Explosion-proof

Test Chamber Lighting : High Brightness Lighting

Temperature/Humidity Adjust : Balance Temperature Humidity Control

Contact Now

Programmable Lab Constant Temperature Humidity Control Cabinet Environmental Chamber

Product Description

IEC62133 UN38.3 Environmental Simulate Test Chambers, Constant Temperature and Humidity Chamber

Description

The programmable temperature and humidity tester also can ba named as environmental tester.
The tester simulate the environment of low temperature, high temperature, high temperature and high humidity, low temperature and low humidity. It is used for testing high and low temperature, moisture resistance of various products.

Features

1. High-texture appearance, the surface handled through the matte stripes, and use of planar non-reactive handles, easy to operate, safe and reliable.
2. Rectangular complex glass window can be viewed the testing sample, windows with anti-sweat heater device that prevents water vapor condensation, and high-brightness PL light.
3. Double-insulated airtight container, which can effectively isolate the internal temperature of leakage.
4. With an external water supply system can be easy to supply water and automatically reuse.
5. Compressor circulatory system from French and use environmentally refrigerants ( R404).

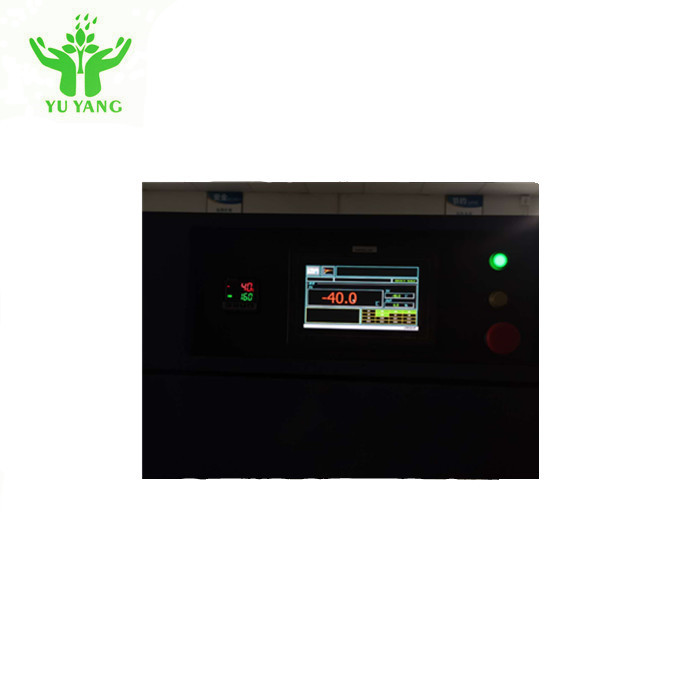

6. PLC controller, touch screen import and display the measure values and curve
7. Controller with multi-segment program edited, temperature and humidity can be controlled quickly (OUICK) or slope (SLOP).
8. Built-in mobile pulley easy to move and has a strong positioning screw fixed position

a. The tester is widely used in various industry.

b. Programmable controlling system

c. TEMI880 colorful touch screen

Specifications

Capacity		80L	150L		225L	4085L	800L	1000L
Temperature range		-70/-40/-20/0/+20 °C~+100/+150°C
Humidity range		20/30%...98%RH
Controlling accuracy		Temperature		±0.3℃
		Humidity		±2% RH
Uniformity		Temperature		±1.5 ℃
		Humidity		±3% RH
Temperature raising speed		Average 3℃/ min
Cooling speed		Average 1℃/ min
Dimension of inner box	W	400	500		500	600	1000	1000
	D	500	600		750	850	1000	1000
	H	400	500		600	800	800	1000
Dimension of external	W	920	1050		1050	1150	1600	1600
	D	1400	1500		1650	1750	1900	1900
	H	900	1100		1200	1400	1600	1600
Test chamber materials		Inner box: A- grade stainless steel sheet External box: matt stainless steel sheet with line processing or steel rolling with plastic spraying finish
Insulation material		PU foam + PE foam
Refrigeration system		Imported closed compressor / eco-friendly refrigerant
Protection device		Fuse switch, over-pressure for compressor, over-heat, over- current, over-temperature, over-load for air fan, fuse protective device and water-lack alarm
Power		AC 1ψ3W 220V or 3ψ5W 380V
Standard configuration		Observation window, testing hole, shelf, time accumulator, lamp
Standards		IEC 68-2-6(FC), GB2423, JJG189-97, GB/T13309-91
